Industrial fabrication has changed. Tight tolerances, repeat orders, and short lead times require consistency that manual welding can’t always provide. This is where robotic welding enters the modern fabrication shop.
Robotic welding isn’t just an additional feature of the shop tucked away in a corner. It’s part of the overall fabrication process, which may include laser cutting, CNC machining, and finishing operations.
To understand how robotic welding works within the shop environment, it’s necessary to discuss the different types of robotic welding and how each component of the system works within a fabrication facility.
What Is a Robotic Welding System in a Fabrication Environment?
A robotic welding system refers to a controlled production cell designed to make repeated welds on identical or similar parts. The system consists of a robotic arm, welding power supply, fixtures, safety enclosure, and programming interface.
Unlike a standalone robotic welding machine, the welding cell is engineered around specific parts and quantities of production. The goal is to complete defined weld paths and maintain arc performance.
In terms of practical application, the value of robotic welding services is in structural parts and production assemblies where weld quality must remain consistent across hundreds or thousands of units.
The overall purpose of a robotic welding system is to deliver repeatable welds at production scale.
What Are the Main Types of Robotic Welding Systems?
Metal fabrication shops often use several robotic welding configurations depending on the parts’ dimensions, geometries, and throughput needs.
Single-Station Robotic Welding Cells
A single-station robotic welding cell uses one robotic arm that performs the welding process inside a guarded enlosure. The operator loads the parts in a fixture, initiates the cycle, and then removes the completed weldment.
This robotic welding configuration works well for moderate production volumes and repeat compounds that include brackets, frames, and structural supports.
A single-station robotic welding system is a practical entry point into robotic welding while ensuring quality results.
Dual-Station or Turntable Welding Cells
For maximum output, dual-station systems allow loading on one side while welding occurs on the other. A rotating table switches positions after the welding cycle is complete.
This arrangement minimizes idle time and maximizes arc-on time, thus increasing output without the need for more robots.
Dual station robotic welding systems are designed for continuous production.
Multi-Robot Welding Cells
Sometimes, larger weldments or assemblies may need more than a single robotic arm. This is possible with multi-robot systems that work together to make multiple welds at the same time.
This type of system is common in heavy structural fabrication and production environments where minimizing cycle time is critical.
Multi-robot cells increase efficiency on complex assemblies.
How Do Robotic Arms Perform Welding Tasks?
The robotic arm can offer the benefits of controlled movement and repeatable positioning. In robotic MIG welding, the robotic arm moves in a predetermined path using pre-set coordinates.
This can be done in several ways, including the use of a teach pendant or offline software that help the operator set the speed of the robotic arm, torch angle, and weld sequence. Once the program is validated, it can then be used repeatedly.
The robotic arm eliminates position changes that can occur with manual welding.
What Role Does the Integrated Welding Power Source Play?
Robotic welding uses a synchronized welding power source. In most cases, MIG welding is the preferred method for structural and production parts.
The power source will communicate with the robot controller. The voltage and wire feed speed must be constant to maintain the speed of the welding process.
The welding equipment provides stability and penetration.
Why Is Fixturing So Important in Robotic Welding?
Fixturing establishes repeatability. If the parts change position from one cycle to the next, the programmed weld path no longer aligns with the joint.
Custom fixturing systems clamp and precisely locate parts. They keep the parts in alignment to ensure every weld follows the same path relative to the joint line.
Many fabrication shops use in-house fixture design, along with CNC machining centers and forming equipment. This supports accurate part positioning for robotic welding jobs that demand tight dimensional control.
Fixturing supports consistency in all robotic weld cycles.
How Does Robotic Welding Integrate With Laser Cutting and CNC Machining?
Robotic welding requires precision in upstream processes. Without precise parts before they enter the welding cell, the quality of the welds will vary.
- Laser cutting provides precise edges and hole patterns.
- CNC machining holds tight tolerances on complex parts.

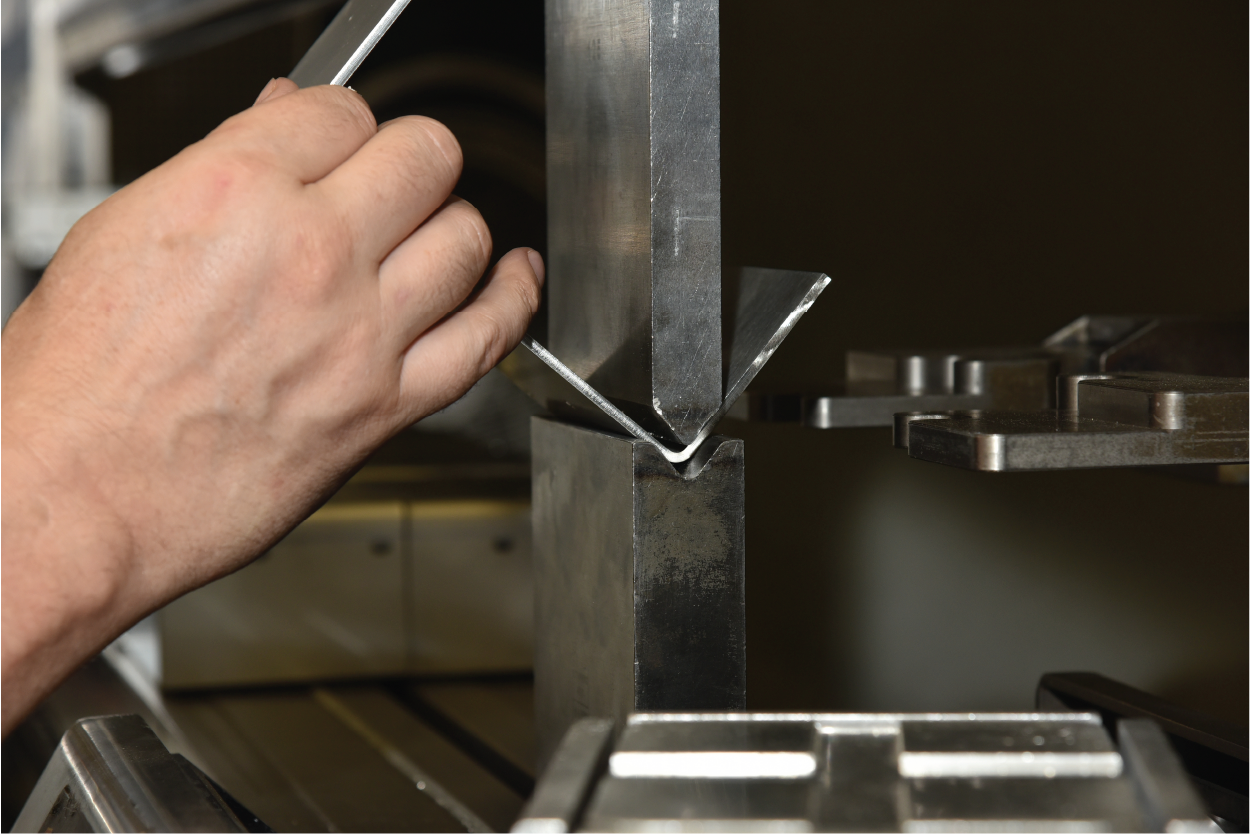

- Press brakes and forming machines shape parts prior to welding.
- Sawing and shearing machines are used for raw material preparation.
Since all of these processes are done in-house, the precision of the parts is consistent. The parts are delivered to the robotic welding cell ready for accurate fit-up.
Integrated fabrication processes improve robotic welding performance.
What Applications Are Best Suited for Robotic MIG Welding?
MIG-based robotic welding is highly useful for structural frames, mounting brackets, enclosures, skids, and production assemblies.
The ideal applications for robotic welding possess the following characteristics:
- Repetitive weld joints
- Moderate to high production volume
- Consistent part geometry
Structural components used in industrial systems, equipment frames, and fabricated assemblies benefit most from robotic welding equipment.
Robotic MIG welding is best used in repeat production environments.
How Does Robotic Welding Improve Throughput?
The robotic welding process maintains consistent cycle times. Once programmed, the weld time remains predictable across production runs
Dual-station cells improve arc-on time. Multi-robot cells improve cycle time for large assemblies. In both instances, production volume improves without compromising weld quality.
Manual welding is still essential for custom applications. However, with the American Welding Society projecting a need for 320,500 new welding professionals by 2029, robotic welding services are necessary for high-volume fabrication without adding variability.
Robotic welding improves production efficiency without compromising quality control.
What Happens After Welding?
After robotic welding, the parts proceed to inspection and finishing. Surface preparation, blasting, and powder coating may follow, depending on the project.
Uniform weld beads enhance finishing consistency. As a result, the geometry of the welds is predictable, reducing rework and making processing easier.
In-house welding and finishing ensure shorter lead times and control of production.
What Should Buyers Look for in Robotic Welding Services?
When evaluating the quality of robotic welding services, it’s necessary to consider integration and process control. Some questions to consider are:
Is the robotic welding process integrated with the company’s internal cutting and forming processes?
- Are the fixtures designed specifically for repeat production?
- Is the MIG welding process supported by synchronized robotic welding equipment?
- How are inspection and quality checks conducted?
A fabrication company that controls the entire process, from start to finish, can ensure tighter tolerances and more consistent timelines.
Final Thoughts on Robotic Welding Systems
A robotic welding system consists of robotic arms, programmable welding cells, integrated power sources, and precision fixturing. They’re part of the broader process of fabrication, which also entails cutting, machining, forming, and finishing.
For production parts requiring precision and repeatability, robotic welding delivers consistent output while improving throughput.
